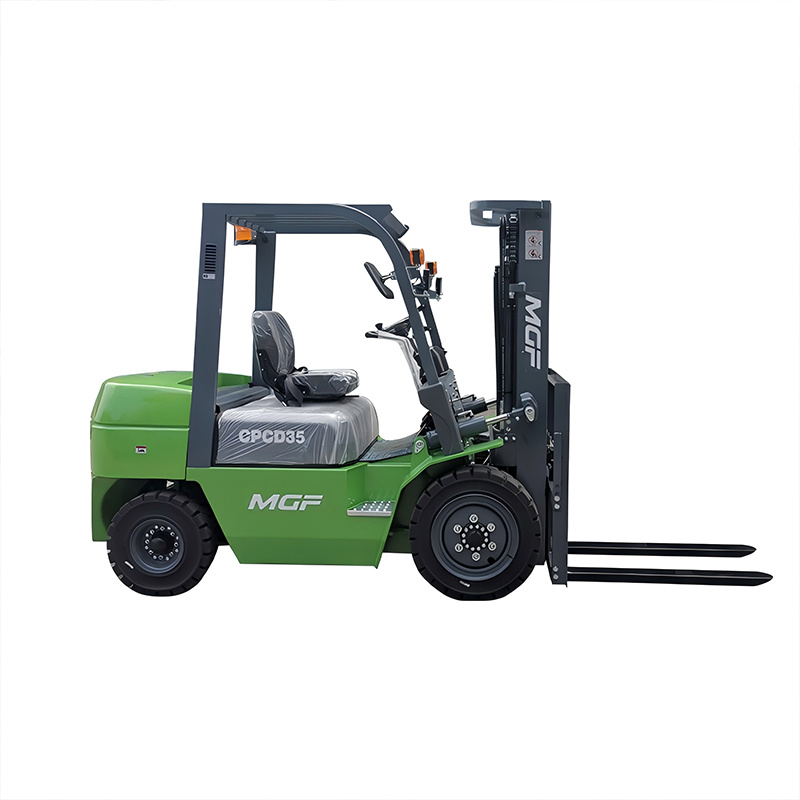

Diesel 3.0T/3.5T forklift

Powerful engine and transmission systemPower and transmission system is composed of excellent components by using advanced manufacturing technology and machine and high quality engine.This combination made the truck powerful reliable.

Commodity name： Diesel 3.0T/3.5T forklift

Category:

Diesel forklift

Support:

honway@minggejx.com

Get a Quote

Powerful engine and transmission system

Reliable special designed instrument

Solid State Digital instrument with built-in intellectual chip, what makes it sensitively, accurately, reliably, low powerconsumption and long-life. It also works in wide temperature range(-40C-+80°C) and with high interference resistant capability.

Scientific ergonomic application

We use scientific ergonomic method to design H2000 Forklift truck. The operation space has been efficiently enlarged. The rough feeling of the driver has been reduced to the lowest extends..

Strict environment protection design

All the safety concerned key components, such as steering axle with rubber, front axle and mast etc, should pass severed reliability tests. Thicken insulator on the inner surface and the rubber edging can absorb vibration and reduce noise.

Parameter

Specification			CPC15	CPC20	CPC25	CPC30	CPC35	CPC40	CPCK50	CPCD50	CPCB50	CPCE50	CPCD60	CPCD70	CPCD80（SMALL8T）	CPCD80	CPCD100
1	Fuel type		Diesel power	Diesel power	Diesel power	Diesel power	Diesel power	Diesel power	Diesel power	Diesel power	Diesel power	Diesel power	Diesel power	Diesel power	Diesel power	Diesel power	Diesel power
2	Rated load	kg	1500	2000	2500	3000	3500	4000	5000	5000	5000	5000	6000	7000	8000	8000	10000
3	load center	mm	500	500	500	500	500	500	500	500	600	500	600	600	600	600	600
4	Lifting height	mm	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000
5	Free lifting height	mm	100	100	100	100	100	0	0	0	200	0	200	200	200	220	220
6	Fork size	mm	920×100×35	1070×122×40	1070×122×40	1070×125×45	1070×125×50	1070×150×45	1070×150×50	1070×150×50	1220×150×55	1070×150×50	1220×150×60	1220×150×65	1220×150×65	1220×175×80	1220×175×80
7	Mast tilt angle front and rear	Deg.	6/12	6/12	6/12	6/12	6/12	6/12	6/12	6/12	6/12	6/12	6/12	6/12	6/12	6/12	6/12
8	Minimum turning radius	mm	1955	2220	2240	2400	2550	2800	2680	3050	3250	3150	3320	3380	3580	3730	3950
9	Ground clearance	mm	110	120	120	135	135	135	135	140	200	140	200	200	200	250	250
10	Height of overhead guard from ground	mm	2040	2140	2140	2165	2165	2230	2210	2290	2450	2180	2460	2460	2460	2560	2560
11	Front overhang	mm	425	448	485	495	495	500	495	570	590	550	615	590	590	710	710
12	Maximum travel speed fully loaded	km/h	13.5	19	19	19	19	18.5	22	25	29	21	26	29	29	26	26
13	Maximum lifting speed with full load	mm/s	590	550	550	480	480	420	330	430	550	360	400	500	500	400	400
14	Maximum traction fully loaded	KN	12.3	12.3	12.3	13.5	13.5	20	18.5	23	54	18	51.4	53	53	52	52
15	Maximum climbing angle	%	20	20	20	20	20	20	20	18	35	20	20	20	20	20	20
16	Full length with fork	mm	3175	3523	3610	3820	4065	4105	4195	4520	4660	4520	4770	4800	5000	5345	5565
17	Full length without forks	mm	2255	2453	2540	2750	2995	3035	2975	3300	3440	3300	3550	3580	3780	4125	4345
18	Full width	mm	1070	1160	1160	1225	1225	1400	1380	1480	1995	1400	1995	1995	1995	2260	2260
19	Overall lifting height of mast	mm	4030	4220	4220	4265	4265	4270	4250	4300	4400	4265	4380	4420	4420	4420	4450
20	Door frame closed height	mm	1995	2060	2060	2060	2060	2190	2185	2190	2500	2180	2500	2625	2625	2700	2840
21	Tire front		6.50-10-10PR	7.00-12-12PR	7.00-12-12PR	28x9-15-12PR	28x9-15-12PR	250-15- 12PR	300-15-18PR	300-15-20PR	8.25-15-14PR	250-15-12PR	8.25-15-14PR	8.25-15-14PR	8.25-15-14PR	9.00-20-14PR	9.00-20-14PR
22	Behind tire		5.00-8-8PR	6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR	7.00-12-12PR	700-12-10PR	700-12-12PR	8.25-15-14PR	700-12-12PR	8.25-15-14PR	8.25-15-14PR	8.25-15-14PR	9.00-20-14PR	9.00-20-14PR
23	Wheelbase	mm	1410	1600	1600	1700	1700	1900	1960	2200	2250	2250	2250	2250	2450	2600	2800
24	Wheelbase	mm	890/920	970/970	970/970	1000/970	1000/970	1160/1065	1000/970	1180/1190	1470/1700	1130/1100	1470/1700	1470/1700	1470/1700	1530/1700	1600/1700
25	Total Weight	Kg	2660	3530	3880	4350	4560	5300	5300	7000	7980	5900	8640	9350	9870	11500	12500
26	Battery	V/Ah	12/80	12/80	12/80	12/80	12/80	12/100	12/80	（12/80）x2	（12/80)x2	12/80	（12/80)x2	（12/80)x2	（12/80)x2	(12/100)x2	(12/100)x2
27	Engine model		XINCHAI4D27G31	XINCHAI4D27G31	XINCHAI4D27G31	XINCHAI4D27G31	XINCHAI4D27G31	XINCHAI4D30G31	XINCHAI4D32G31	XINCHAI 4D35	XICHAI 4DF3	XINCHAI4D32G31	XICHAI 4DF3	XICHAI 4DF3	XICHAI 4DF3	XICHAI 4DF3	XICHAI 4DF3
28	Rated power	kw/r.p.m	32	36.8	36.8	36.8	36.8	36.8	48	60	85	48	85	85	85	85	85
29	Gearbox		Mechanical/Hydraulic	Mechanical/Hydraulic	Mechanical/Hydraulic	Mechanical/Hydraulic	Mechanical/Hydraulic	Mechanical/Hydraulic	Mechanical/Hydraulic	Mechanical/Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
30	Work pressure	Mpa	18.5	18.5	18.5	18.5	18.5	18.5	18.5	18.5	20	20	20	20	20	20	20
