2 Cubic meters Self loading concrete mixer truck

The main products include concrete pumps, from the ingredient concrete mixer truck, mortar spraying machine and forklift.

  • Commodity name： 2 Cubic meters Self loading concrete mixer truck

Category:

Self loading concrete mixer truck

Support:

honway@minggejx.com

Get a Quote
Related Products
  • Product Description

  • Parameter

    Item No.   H15 H20 H25 H30 H35 H40
    Engine Type   Yunnei490 Turbocharging Yunnei 4102 Turbocharging Yunnei 4102 Turbocharging Yuchai 4105 Turbocharging Yuchai 4105 Turbocharging Weichai 6105 Turbocharging
    Engine Power KW 58 76 76 85 85 92
    Drum Capacity m³ 2 3.5 4 5 5.5 6.5
    Valid output m³ 1.5 2 2.5 3 3.5 4
    Overall dimension
    Length*Width*Height    		 mm 5350*1800*2900 5450*2450*2800 5450*2450*2800 6150*2700*3350 6150*2700*3350 6650*2860*3350
    Axle base mm 2450 2400 2400 2450 2450 3200
    Front wheel base mm 1500 1620 1620 1680 1680 2000
    Rear wheel base mm 1500 1620 1620 1680 1680 2000
    Dumping height mm 1080 1250 1250 1400 1400 1500
    Minimum ground clearance mm 270 280 280 290 290 300
    Total weight(KGS) KGS 4500 6200 6200 8000 8000 10500
    Fuel consumption (Theoretical)L/H L/H 5.0-7.0 6.0-8.0 6.0-8.0 8.0-10.0 8.0-10.0 10.0-12.0
    Maximum drive speed KM/H 25 25 25 25 25 30
    Tank rotation speed Turn/minute 16 16 16 18 18 20
    Tank rotation angle ° 0 180/270 180/270 180/270 180 180/270
    Drive Bridge   small hub reductor small hub reductor small hub reductor big hub reductor big hub reductor ZL-30
    Gear box   265 splitted 265 265 280 280 315
    Tire Dimensions (Front)   23.5-16 20.5-16 20.5-16 12R22.5(Double Tire)16/70R20(Single Tire) 12R22.5(Double Tire)16/70R20(Single Tire) 18/70-20
    Tire Dimensions (Rear)   23.5-16 20.5-16 20.5-16 12R22.5or16/70R20 12R22.5or16/70R20 18/70-20
    Braking distance mm 1000 1000 1000 1000 1000 1000
    Engine oil capacity L 12-13 13 13 13 13 22
    Hydraulic oil capacity L 120 120 120 120 120 150
    Hydraulic oil type L No.46 efficient wearable No. 46 efficient wearable No. 46 efficient wearable No. 46 efficient wearable No. 46 efficient wearable No. 46 efficient wearable
    Fuel tank L 120 120 120 120 120 150
    Water tank L 500 750 750 750 750 750
    Small pump displacement L/MINUTE 120 130 130 150 150 150
    Big pump displacement L/MINUTE 120(sinking pump) 150 150 150 150 150
    Radius of turning circle   6 6 6 6 6 7
    Bucket capacity m³ 0.4 0.6 0.6 0.6 0.6 0.6
    Transmission oil type/capacity L No. 8 transmission oil/21-23 No. 8 transmission oil/50 No. 8 transmission oil/50 No. 8 transmission oil/50 No. 8 transmission oil/50 No. 8 transmission oil/50
    Axle gear oil type/capacity L No. 18 double curve bight/ No.18 double curve bight/3.5 No.18 double curve bight/3.5 No. 18 double curve bight/3.5 No. 18 double curve bight/3.5 No. 18 double curve bight/3.5
    Hub reduction gear oil type/capacity   No. 18 double curve bight/ No. 18 double curve bight/1.8 No. 18 double curve bight/1.8 No. 18 double curve bight/1.8 No. 18 double curve bight/1.8 No. 18 double curve bight/1.8
    Double tire pressure Bar / 10 10 10 10 10
    Single tire pressure Bar 6 6 6 6 6 6
    Tank pressure Bar 4.0-8.0 4.0-8.0 4.0-8.0 4.0-8.0 4.0-8.0 4.0-8.0
    Brake mode   Disc brake Disc brake Disc brake Disc brake Disc brake Disc brake

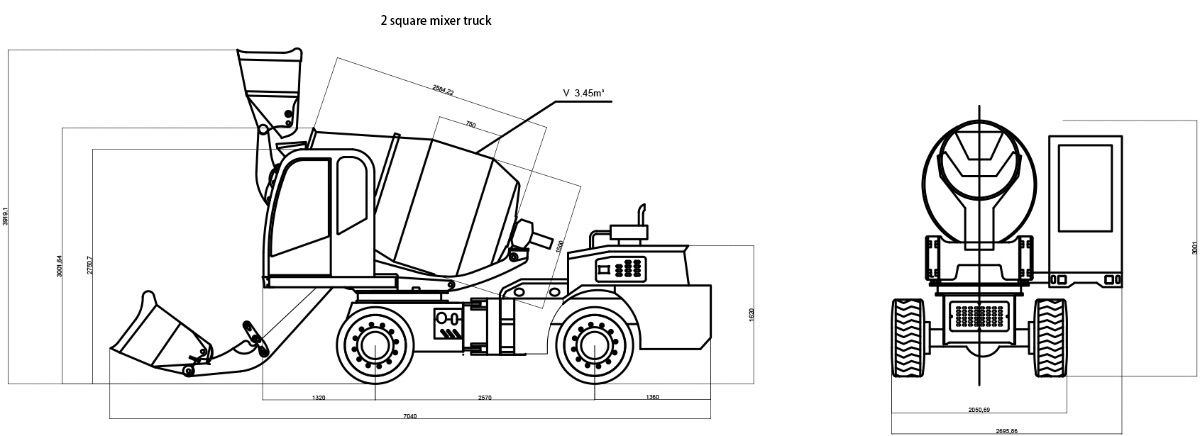

    Product Detail

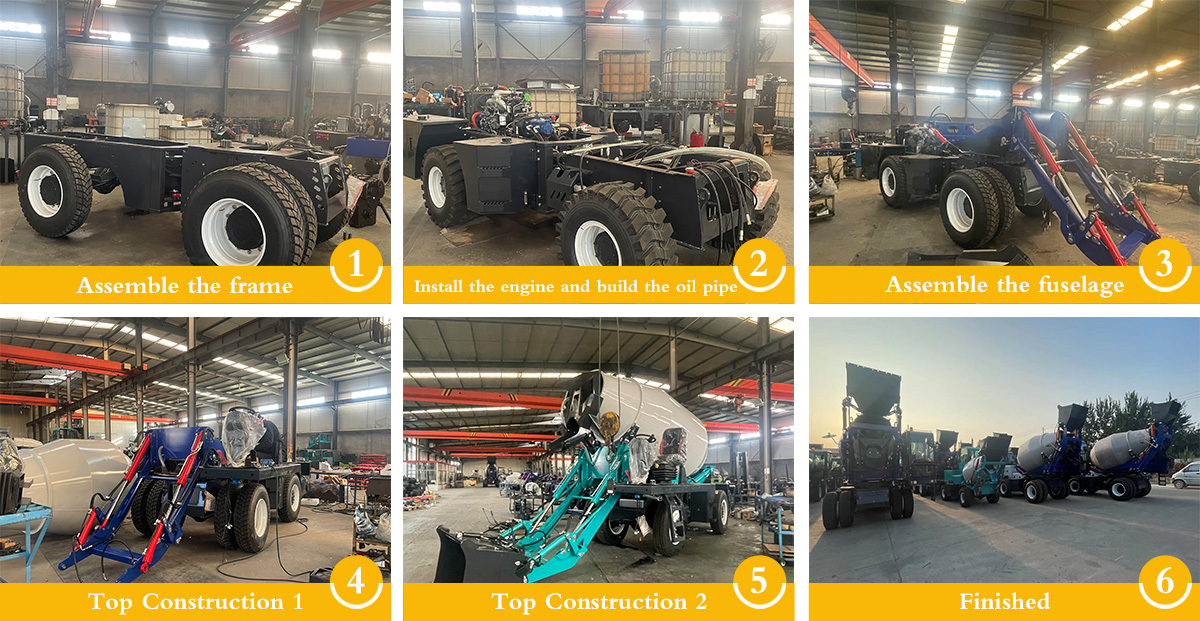

    Process Flow

    Finished Product Case

Qualification Certificate

Workshop

Factory
