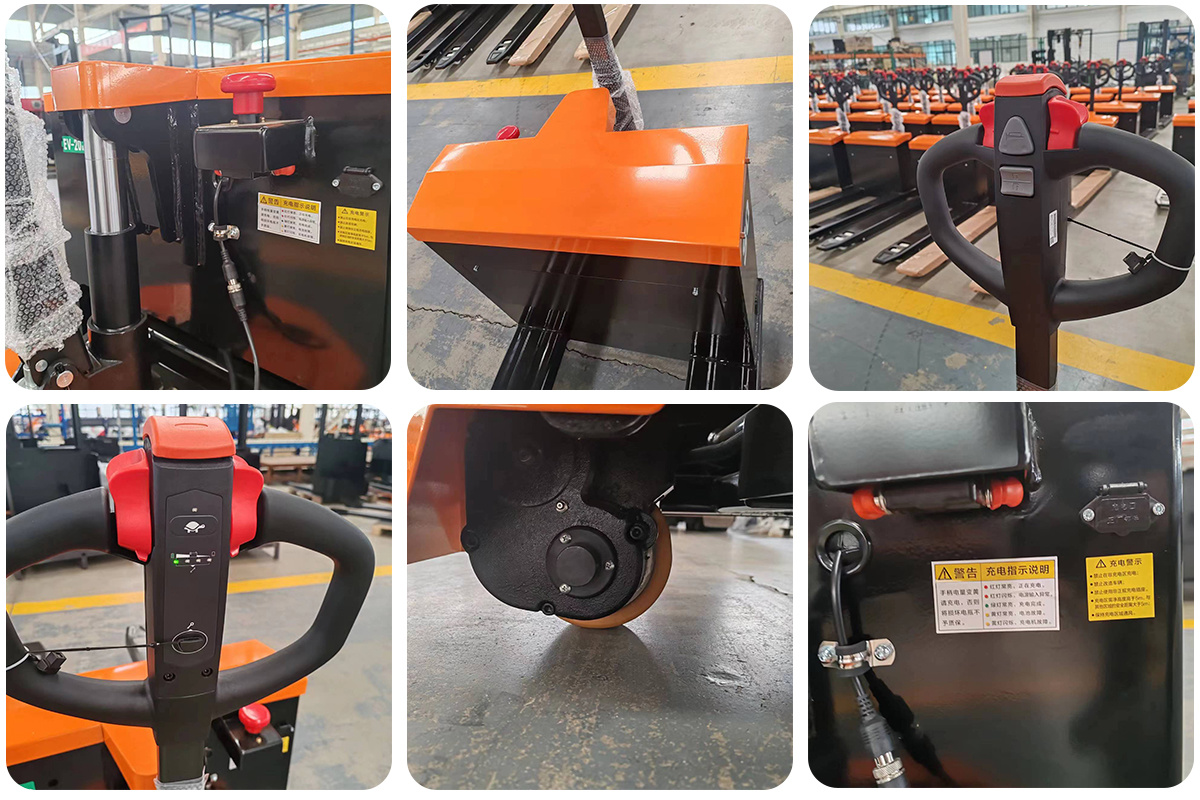

3T Electric forklift pallet jack truck

The main products include concrete pumps, from the ingredient concrete mixer truck, mortar spraying machine and forklift.

Category:

Support:

Model		CBD30EA
Load capacity	Q(kg)	3000
Load center	C(mm)	600
Wheel base	Y(mm)	1335
Operating type		Walking type
Wheels
Wheels type		Nylon wheel/PU wheel
Wheel quantity Driving wheel/Bearing wheel		1/4
Driving wheel size	mm	φ160×52
Bearing wheel size	mm	φ80×70 （Double wheels)
Dimension
Min.fork lowered height	S1(mm)	85
Max.fork lifting height	h1(mm)	195
Max. lifting height	(mm)	110
Overall fork width	B1(mm)	550/680
Inside width between forks	B2(mm)	230/360
Fork length	L1(mm)	1120（Customizable）
Fork width	S(mm)	160
Fork thickness	e(mm)	55
Min frounf height	S2(mm)	30
Overall length（With /Without handle）	L(mm)	1795/1730
Overall width	B(mm)	697
Overall height(With handle)	h(mm)	1210
Overall height(Without handle)	h2(mm)	895
Min.Turning radius	Wa(mm)	1750
Min.Aisle width for pallets 800×1200	Ast(mm)	2237
Min.Aisle width for pallets 1000×1200	Ast(mm)	2337
Performance
Travel speed, laden/unladen	km/h	4/4.3
Lift speed, laden/unladen	mm/s	16/21
Lowering speed, laden/unladen	mm/s	52.4/33
Gradeability, laden/unladen	%	6/15
Electrical configuration
Drive motor	kW	1.5
Lift motor	kW	1.2
Battery voltage / capacity	V/Ah	48V/32Ah/45Ah
Brake		Electromagnetic/Regene rative
Controller		Essence
Weight
Battery weight	kg	36/48
Service weight without battery	kg	224
