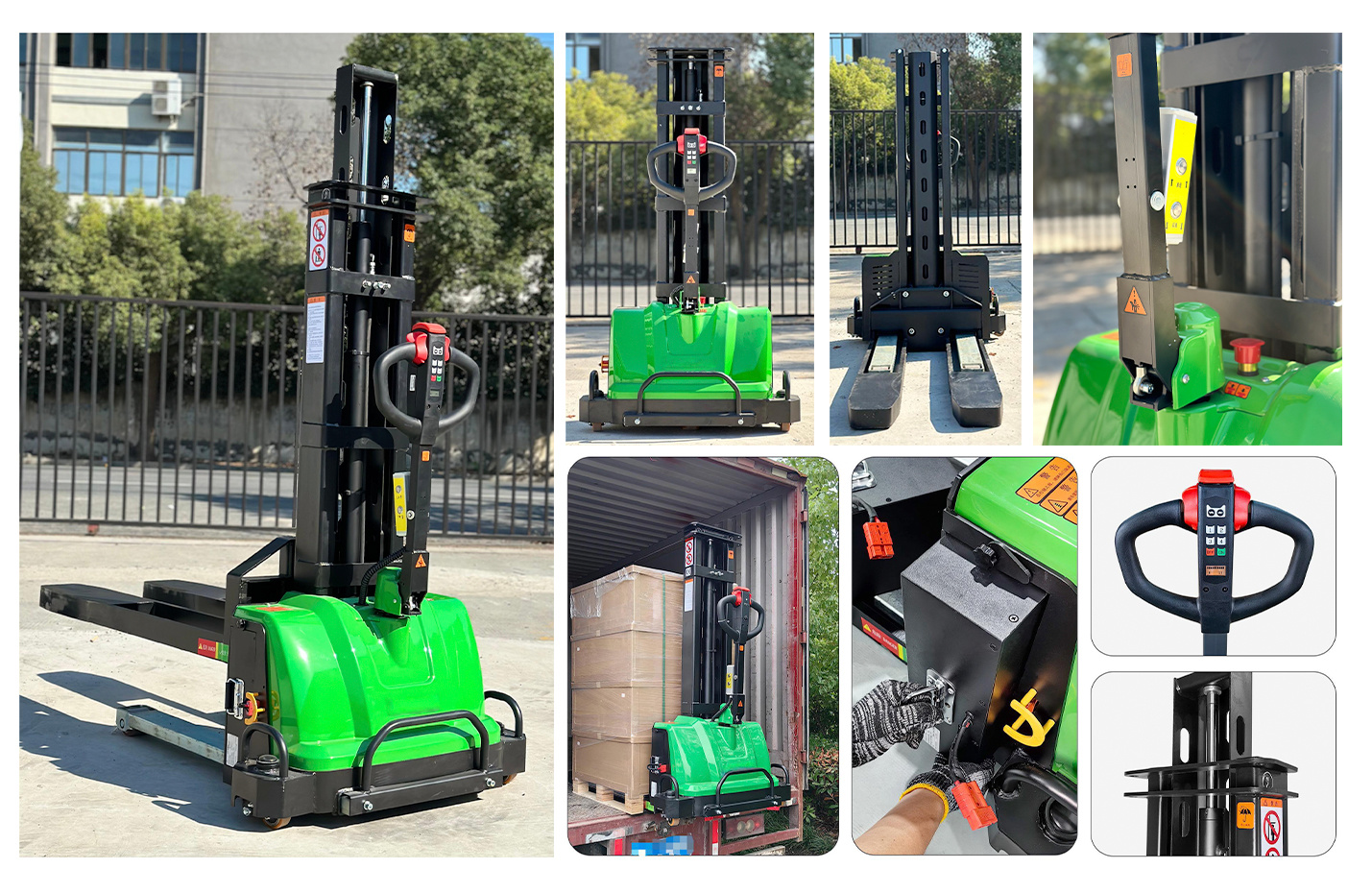

1.3T All-electric truck carrying forklift

The main products include concrete pumps, from the ingredient concrete mixer truck, mortar spraying machine and forklift.

Category:

Support:

Technical paramete
Feature
Model		MG13-11	MG13-13	MG13-15
Operation type		Electric
Load capacity	kg	1300
Load center	mm	400
Dimension
Lifting height	mm	1100	1300	1500
Mast lower height	mm	1450	1650	1850
Mast extend height	mm	2280	2880	3080
Overalllength	mm	1730
Overall width of frame	mm	910
Wheel base	mm	995
Fork length(s/e/l)	mm	60/195/1200
Overall fork width	mm	600
Fork inside width	mm	210
MiniTurning radius	mm	1300
Fork lowered height	mm	90
Wheels
Wheels type		PU
Front wheel	mm	φ78
Size of drive wheels	mm	190*70
Number of wheels	pcs	5
Performance
Lift speed (laden/unladen)	mm/s	135/140
lowering speed(laden/unladen)	mm/s	145/140
Gradeability	%	3.0/5.0
Electrical configuration
Hoist motor type		DC 直流电机
Rated output	kw	2
Battery voltage/capacity	V/AH	48V30AH
Weight
Weight	kg	387	395	406
